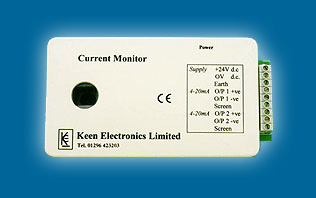

CURRENT MONITOR
INTRODUCTION
The Current Monitor is designed to continuously measure the current flowing down
a load carrying conductor. The conductor passes through the aperture in the case,
there is no electrical connection to be made. The current in the conductor is converted
into a voltage signal by a current transformer. This voltage is precision full wave
rectified, smoothed and amplified to drive a 4-

TECHNICAL SPECIFICATION
Current range -
Operating frequency -
Power requirement
-
Current consumption
-
Output -
Output
connections -
Calibration -
Linearity -
Temp. Coefficient -
Power on indicator -
Connections
-
Packaging -
Dimensions -
Mounting
The current monitor should be mounted in a metal enclosure using two M4 or similar bolts. The unit is not suitable for mounting in areas where water may get into the unit.
Connections
Pass the load carrying conductor through the hole in the case. Only put one conductor through this hole.
Connect a 24 Volt d.c. supply to the terminals marked +24V and 0V adjacent to the lettering "Supply"
Connect the 4-
When using only O/P 1, please note that a 10 Volt zener diode is internally connected across O/P 2. If the resistance of the current loop exceeds 400R connect a wire link across O/P 2 terminals to short out this internal zener diode.
Operation
On application of the 24 Volt d.c. supply the green Power LED will light.
The unit is calibrated as follows :-
0A load current 4mA output current
20A load current 20mA output current
